Stereo Depth

left input image

right input image

cam0=[1733.74 0 792.27; 0 1733.74 541.89; 0 0 1]
cam1=[1733.74 0 792.27; 0 1733.74 541.89; 0 0 1]
doffs=0
baseline=536.62
width=1920
height=1080
ndisp=170
vmin=55
vmax=142

stereo_calib.txt

Generated point cloud from stereo depth

Category: Lifting (2D → 3D)
Experimental: No

Stereo depth estimation recovers per-pixel metric depth (in metres) from a pair of rectified left/right RGB images by matching corresponding pixels across the two views and applying the stereo geometry formula:

depth_m = baseline_mm × focal_length_px / disparity_px / 1000

vizion3d uses S2M2 (Stereo Matching Model with Multi-scale transformer) as its stereo backend. Unlike Depth Estimation, stereo depth produces real-world metric distances — provided the camera calibration parameters are correct.

Point-cloud output uses OpenGL/viewer camera space: X+ right, Y+ up, and Z- forward into the scene. depth_map remains positive metric depth in metres.

---

Model backends

Default checkpoint download: stereo-depth-s2m2-L.pth

curl -L \
  https://github.com/OlafenwaMoses/vizion3D/releases/download/essentials-v1/stereo-depth-s2m2-L.pth \
  -o stereo-depth-s2m2-L.pth

Value	What happens
(default)	Downloads the vizion3D release checkpoint (stereo-depth-s2m2-L.pth) to ~/.cache/vizion3d/models/ on first use, then loads it

Models are kept in memory after the first inference. Set VIZION3D_MODEL_CACHE to override the cache directory.

---

Command parameters

StereoDepthCommand is the input contract for this task.

Parameter	Type	Required	Default	Description
left_image	str \| bytes	Yes	—	Left-camera image. Pass a file path string or raw image bytes.
right_image	str \| bytes	Yes	—	Right-camera image (same resolution, horizontally offset from left_image).
model_backend	str	No	vizion3D release checkpoint URL	S2M2 checkpoint. See Model backends above.
return_depth_image	bool	No	True	If True, the result includes a 16-bit grayscale Open3D Image where closer = brighter (65535 = min_depth, 0 = max_depth).
return_raw_depth	bool	No	True	If True, the result includes the metric depth as a float32 numpy array (H, W) in metres — unmodified, before any normalisation.
return_point_cloud	bool	No	False	If True, the result includes an Open3D PointCloud in metres using OpenGL/viewer camera space (X+ right, Y+ up, Z- forward).
advanced_config	StereoDepthAdvancedConfig	No	1280×720 @ 100 mm baseline defaults	Camera intrinsics and inference settings. See Advanced config below. Not sure what intrinsics are? See Camera Intrinsics Matrix.

---

Result fields

StereoDepthResult is the output contract.

Field	Type	Always present	Description
depth_map	list[list[float]]	Yes	Metric depth in metres, shape [H][W]. Real-world distances (assuming correct calibration).
disparity_map	list[list[float]]	Yes	Raw disparity in pixels, shape [H][W]. Horizontal pixel offset between matched features.
min_depth	float	Yes	Minimum value in depth_map (metres).
max_depth	float	Yes	Maximum value in depth_map. Guaranteed max_depth >= min_depth.
backend_used	str	Yes	Resolved local file path of the checkpoint used.
depth_image	open3d.geometry.Image \| None	Yes (set return_depth_image=False to suppress)	16-bit grayscale image, dtype uint16. 65535 = min_depth (closest, brightest); 0 = max_depth (farthest, darkest).
raw_depth	np.ndarray \| None	Yes (set return_raw_depth=False to suppress)	Float32 array, shape (H, W), metric depth in metres. Unmodified values before any normalisation or encoding.
point_cloud	open3d.geometry.PointCloud \| None	When return_point_cloud=True	Coloured 3D point cloud, coordinates in metres using OpenGL/viewer convention: X+ right, Y+ up, Z- forward.
point_cloud_scale	float	Yes	Always 1.0 — stereo depth produces real metric coordinates.

---

1. Direct Python import — image bytes

from vizion3d.stereo import StereoDepth, StereoDepthCommand

with open("left.png", "rb") as f:
    left_bytes = f.read()
with open("right.png", "rb") as f:
    right_bytes = f.read()

cmd = StereoDepthCommand(left_image=left_bytes, right_image=right_bytes)
result = StereoDepth().run(cmd)

print(f"Depth range : {result.min_depth:.2f} → {result.max_depth:.2f} m")
print(f"Backend     : {result.backend_used}")

---

2. Direct Python import — file paths

from vizion3d.stereo import StereoDepth, StereoDepthCommand

cmd = StereoDepthCommand(
    left_image="left.png",
    right_image="right.png",
)
result = StereoDepth().run(cmd)

print(f"Depth range: {result.min_depth:.2f} → {result.max_depth:.2f} m")

---

3. Disparity map

The raw disparity map (in pixels) is always returned alongside the depth map.

import numpy as np
from vizion3d.stereo import StereoDepth, StereoDepthCommand

cmd = StereoDepthCommand(left_image="left.png", right_image="right.png")
result = StereoDepth().run(cmd)

disp = np.array(result.disparity_map)
print(f"Disparity range: {disp.min():.1f} → {disp.max():.1f} px")

---

4. Depth image (16-bit PNG)

import numpy as np
from PIL import Image as PILImage
from vizion3d.stereo import StereoDepth, StereoDepthCommand

cmd = StereoDepthCommand(
    left_image="left.png",
    right_image="right.png",
    return_depth_image=True,
)
result = StereoDepth().run(cmd)

depth_array = np.asarray(result.depth_image)   # shape (H, W), dtype uint16
PILImage.fromarray(depth_array).save("depth.png")

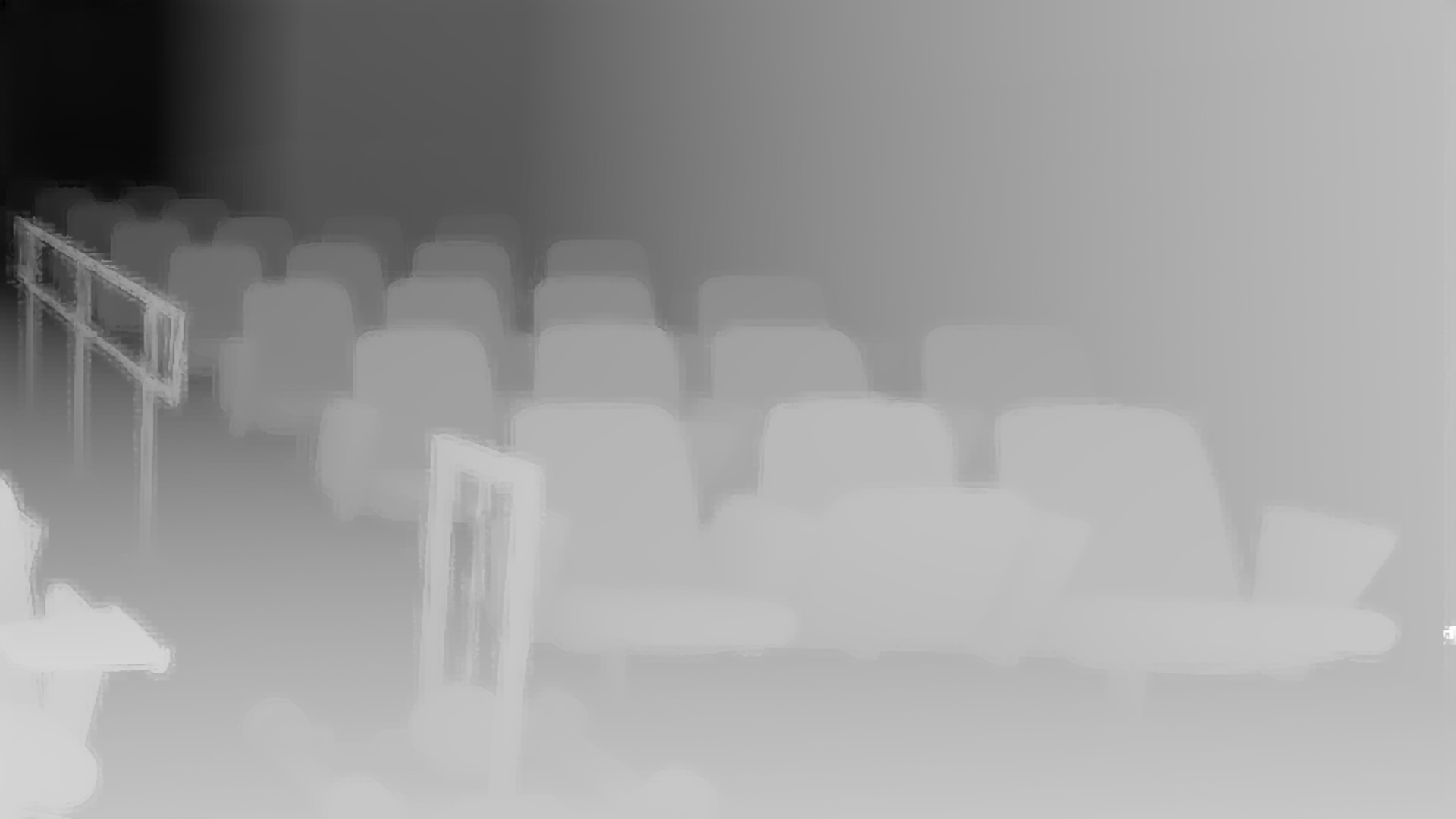

depth map

---

5. Point cloud

Point coordinates are in real metres using OpenGL/viewer convention: X+ right, Y+ up, Z- forward. point_cloud_scale is always 1.0.

import numpy as np
import open3d as o3d
from vizion3d.stereo import StereoDepth, StereoDepthAdvancedConfig, StereoDepthCommand

cmd = StereoDepthCommand(
    left_image="left.png",
    right_image="right.png",
    return_point_cloud=True,
    advanced_config=StereoDepthAdvancedConfig(
        focal_length=1733.74,
        cx=792.27,
        cy=541.89,
        baseline=536.62,   # mm
    ),
)
result = StereoDepth().run(cmd)

pcd = result.point_cloud
points = np.asarray(pcd.points)               # shape (N, 3), metres
print(f"Points: {len(points):,}")
print(f"Scale : {result.point_cloud_scale} m/unit")  # always 1.0

# Real-world distance between two points
dist = np.linalg.norm(points[0] - points[1]) * result.point_cloud_scale
print(f"p0→p1: {dist:.4f} m")

o3d.io.write_point_cloud("scene.ply", pcd)

---

6. All outputs at once

import numpy as np
import open3d as o3d
from vizion3d.stereo import StereoDepth, StereoDepthCommand

cmd = StereoDepthCommand(
    left_image="left.png",
    right_image="right.png",
    return_depth_image=True,
    return_point_cloud=True,
)
result = StereoDepth().run(cmd)

print(f"Depth range : {result.min_depth:.2f} → {result.max_depth:.2f} m")
depth_arr = np.asarray(result.depth_image)    # uint16 (H, W)
o3d.io.write_point_cloud("scene.ply", result.point_cloud)

---

7. Automatic input scaling

The handler automatically resizes both images to fit within 960 × 540 before inference, preserving the aspect ratio. This matches the resolution the model was trained near; running at higher resolutions collapses the internal correlation matrix to near-zero disparity and produces an empty point cloud.

The resize is transparent — disparity and point cloud are reprojected back to the original image dimensions before the result is returned, so all depth values and 3D coordinates are in the original pixel coordinate space. No adjustment to your intrinsics (focal_length, cx, cy) is needed regardless of the input resolution.

---

8. REST API

Start the server with all REST features enabled:

uv run vizion3d-serve-rest

To preload the stereo checkpoint into memory at startup, pass --stereo_model. This also enables the stereo-depth endpoint. If this flag is omitted, the default vizion3D release model is downloaded on first inference and cached under ~/.cache/vizion3d/models/.

uv run vizion3d-serve-rest \
  --stereo_model /models/stereo-depth-s2m2-L.pth

The REST server can expose only selected features. If none of --depth_estimation, --stereo_depth, --depth_model, or --stereo_model is provided, all features are enabled. If any of those flags is provided, only the selected features are enabled. A model path flag selects and preloads its feature:

# Only POST /lifting/stereo-depth
uv run vizion3d-serve-rest --stereo_depth

# Only stereo depth, with the model loaded before the first request
uv run vizion3d-serve-rest \
  --stereo_depth \
  --stereo_model /models/stereo-depth-s2m2-L.pth

# Enable both depth estimation and stereo depth explicitly
uv run vizion3d-serve-rest \
  --depth_estimation \
  --stereo_depth \
  --depth_model /models/depth_anything_v2_vitb.pth \
  --stereo_model /models/stereo-depth-s2m2-L.pth

Send a request with two image files:

curl -X POST "http://localhost:8000/lifting/stereo-depth" \
  -F "left_image=@left.png" \
  -F "right_image=@right.png" \
  -F "focal_length=1733.74" \
  -F "baseline=536.62" \
  -F "cx=792.27" \
  -F "cy=541.89" \
  -F "return_point_cloud=true"

The response is a JSON-serialised StereoDepthResult. Binary fields (depth_image, point_cloud_ply) are base64-encoded.

---

9. gRPC API

Start the server:

uv run vizion3d-serve-grpc

Call from a gRPC client:

import grpc
from vizion3d.proto import lifting_pb2, lifting_pb2_grpc

channel = grpc.insecure_channel("localhost:50051")
stub = lifting_pb2_grpc.LiftingServiceStub(channel)

with open("left.png", "rb") as f:
    left_bytes = f.read()
with open("right.png", "rb") as f:
    right_bytes = f.read()

request = lifting_pb2.StereoDepthRequest(
    left_image_bytes=left_bytes,
    right_image_bytes=right_bytes,
    return_point_cloud=True,
    advanced_config=lifting_pb2.StereoDepthAdvancedConfig(
        focal_length=1733.74,
        baseline=536.62,
        cx=792.27,
        cy=541.89,
    ),
)
response = stub.RunStereoDepth(request)
print(f"Min depth : {response.min_depth:.2f} m")
print(f"Max depth : {response.max_depth:.2f} m")
print(f"Backend   : {response.backend_used}")

---

Advanced config

StereoDepthAdvancedConfig supplies the camera calibration needed for accurate metric depth.

Field	Type	Default	Description
focal_length	float	1000.0	Focal length in pixels (assumes fx = fy). Override with your calibration.
cx	float	640.0	Principal point x (pixel column of optical axis).
cy	float	360.0	Principal point y (pixel row of optical axis).
baseline	float	100.0	Stereo baseline in millimetres.
doffs	float	0.0	Disparity offset (non-zero for Middlebury-style calibration).
z_far	float	50.0	Max depth in metres for point cloud.
conf_threshold	float	0.1	Min per-pixel confidence score for point cloud inclusion.
occ_threshold	float	0.5	Min occlusion score for point cloud inclusion.
(input scaling)	—	automatic	Images are automatically resized to fit within 960×540 before inference, preserving aspect ratio. Disparity and point cloud are reprojected back to the original resolution — metric depth and intrinsics are unaffected.

How to obtain camera intrinsics

From a calibration file (e.g. Middlebury):

# calib.txt format: cam0=[fx 0 cx; 0 fy cy; 0 0 1]
# baseline=B (mm), doffs=d
from vizion3d.stereo import StereoDepthAdvancedConfig

cfg = StereoDepthAdvancedConfig(
    focal_length=1733.74,   # from calib.txt
    cx=792.27,
    cy=541.89,
    baseline=536.62,        # B in mm
    doffs=0.0,              # d from calib.txt
)

From Intel RealSense SDK:

import pyrealsense2 as rs

pipeline = rs.pipeline()
profile = pipeline.start()
left_stream = profile.get_stream(rs.stream.infrared, 1)
intrinsics = left_stream.as_video_stream_profile().get_intrinsics()

cfg = StereoDepthAdvancedConfig(
    focal_length=intrinsics.fx,
    cx=intrinsics.ppx,
    cy=intrinsics.ppy,
    baseline=50.0,   # RealSense D435 baseline ≈ 50 mm
)

Approximation from field of view:

import math

hfov_deg = 90.0  # horizontal FOV from camera spec
image_width = 1280
focal_length = image_width / (2 * math.tan(math.radians(hfov_deg / 2)))

cfg = StereoDepthAdvancedConfig(
    focal_length=focal_length,
    cx=image_width / 2 - 0.5,
    cy=720 / 2 - 0.5,
    baseline=100.0,
)

---

3D annotation from a stereo cloud

A stereo point cloud is in OpenGL/viewer camera space (Z = -metric_depth, origin at the left camera), making it directly compatible with Object Mask Annotation 3D. Pass the same intrinsics you used for stereo depth. Do not pass image_input — the annotation task synthesises the segmentation image from the point cloud's stored colours, which avoids having to pick between the left and right frames.

import open3d as o3d
from vizion3d.stereo import StereoDepth, StereoDepthCommand, StereoDepthAdvancedConfig
from vizion3d.annotation import ObjectMaskAnnotation3D, ObjectMaskAnnotation3DCommand
from vizion3d.annotation.models import ObjectMaskAnnotation3DConfig

stereo_result = StereoDepth().run(
    StereoDepthCommand(
        left_image="left.png",
        right_image="right.png",
        return_point_cloud=True,
        advanced_config=StereoDepthAdvancedConfig(
            focal_length=1733.74,
            cx=792.27,
            cy=541.89,
            baseline=536.62,
        ),
    )
)

annotation_result = ObjectMaskAnnotation3D().run(
    ObjectMaskAnnotation3DCommand(
        point_cloud=stereo_result.point_cloud,
        return_annotated_cloud=True,
        advanced_config=ObjectMaskAnnotation3DConfig(
            fx=1733.74,
            fy=1733.74,
            cx=792.27,
            cy=541.89,
        ),
    )
)

for ann in annotation_result.annotations:
    print(f"{ann.label:20s}  conf={ann.confidence:.2f}  3D points={len(ann.point_indices)}")

o3d.io.write_point_cloud("annotated.ply", annotation_result.annotated_cloud)

Detection results from the stereo point cloud annotation:

chair                 conf=0.87  3D points=106616
chair                 conf=0.85  3D points=54834
chair                 conf=0.53  3D points=4517
chair                 conf=0.51  3D points=20499
chair                 conf=0.48  3D points=22956
chair                 conf=0.39  3D points=30634
chair                 conf=0.36  3D points=11034
chair                 conf=0.31  3D points=11890
chair                 conf=0.29  3D points=118946
chair                 conf=0.28  3D points=11229
chair                 conf=0.25  3D points=18532

See Object Mask Annotation 3D — Stereo integration for the full walkthrough.

---

Known limitations

• Rectified pairs required — images must be stereo-rectified so corresponding points lie on the same horizontal scanline. Un-rectified pairs will not produce reliable results.
• Metric scale depends on calibration — an inaccurate baseline or focal_length scales all depth values uniformly. Always use calibrated values for real applications.
• Python 3.12 required for Open3D — return_depth_image and return_point_cloud require Open3D, which currently only supports Python 3.12 in this project.
